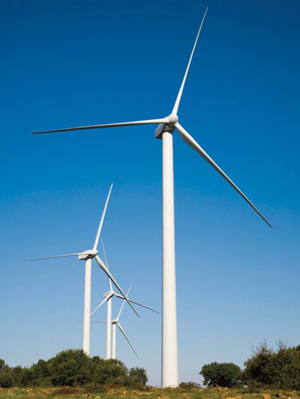

UGE 2MW HAWT

We are proud to distribute the 2MW Horizontal Axis Wind Turbines from Urban Green Energy (UGE).

The UGE 2000H is tailored to meet local characteristics such as grid specifications and wind conditions. Various tower heights and blade lengths are available; versatility that makes it adaptable to a wide variety of sites. Cooling and heating systems mean that weather is never a concern. In fact, the UGE 2000H can withstand temperatures as low as -40°C and as high as 55°C.

The UGE 2000H is one of the quietest wind turbines in its class at just 102dB(A) at a wind speed of 8m/s as measured at the base of the tower. The generator has Class F insulation to ensure noise is not an issue. The blades are engineered to minimize noise.

The UGE 2000H is manufactured in ISO9001 and ISO14001 certified factories to assure both quality and sustainability. Quality of our products is considered in everything we do.  Our dedication to the wind energy industry ensures we always deliver high quality products and customer service. Furthermore, after we have completed our own quality tests, SGS (www.sgs.com) performs the pre-shipment certification on the wind turbines with the following scope: visual inspection, dimension control, review of test/inspection records, check of packaging.

The core of our business model is the availability of our products. We make every effort to provide a solution for all of our customers. We place a remium on having some of the shortest delivery times in the wind energy industry – something that our skilled manufacturers work hard to support. If you have a narrow time frame, count on UGE to deliver.




Performance Metric Imperial

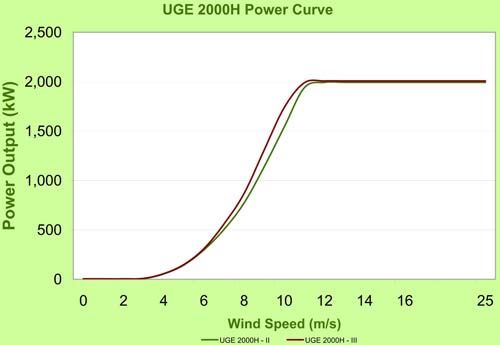

Rated Power 2MW
Rated Wind Speed 12 m/s 26 mph
Operating Range 3 – 25 m/s 6 – 55 mph
Maximum Wind Speed 55 m/s 123 mph
Tip Speed 70.5 m/s 157 mph
Rotational Speed 6 – 17.5 RPM
Rated Speed 15.3 RPM
Survival Speed 17.5 RPM
Swept Area 6079 / 6790 m²
Noise Level at 8 m/s wind speed 102 DB
Wind Class IEC IIA / IIIA

Physical Parameters
Rotor Diameter 88 / 93 meters 288 / 305 ft
Number of Blades 3
Standard Hub Height 80 / 90 meters 262 / 295 ft
Blade Composition Fiberglass/Epoxy
Lightning Protection Included in blade
Nacelle Weight 75 mtonnes 165,346 lbs
Rotor Weight 45 mtonnes 99,208 lbs
Tower Weight 125-150 mtonnes 275,577 –
330,693 lbs

Drive Train
One row double tapered roller bearings
3-stage combined planetary/helical gearbox

Pitch System
Independent Blade pitch per rotor blade with emergency power supply
DC Electro Servo Drive
Failsafe Brake Battery Back-up

Yaw System
Ball Bearing
Active hydraulic disc brakes mounted on the gearbox high speed shaft
4 Asynchronous Motor

Generator
Permanent magnet Direct Drive DC Generator
Noise Reduction Class F insulation
Reliability IP54
Speed 1300 – 2300 RPM
Rated Temperature -40C – 115C -40F – 239F

Controller
Type Computer
Remote Control Internet
SCADA WPPIS via Internet

Power Converter
I.G.B.T. Pulse Width Modulation (PWM) control
Voltage 1,100Vrms
Frequency 50 / 60 Hz
